KST Digital DMR DM-R8000 Walkie talkie Repeater

FOB Reference Price:Get Latest Price
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
KST
Model Number:
DM-R8000
VHF:
136-174MHz
UHF:
400-470MHz
Talk Range::
50 KM
Dimensions::
Stronger
Frequency Range::
UHF1:400-470MHz; UHF2:450-520MHz; UHF3:350-400MHz;
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard packsge
Port
Shenzhen

KST Digital DMR DM-R8000 Walkie talkie Repeater


RD980 support digital and analog system , top-quality and can meet harsh requesting from any normal and trunking system



Specifications



General

Frequency Range

UHF1:400-470MHz; UHF2:450-520MHz;
UHF3:350-400MHz; VHF:136-174MHz;

Channel Capacity

16

Channel Spacing

25/20/12.5KHz

Frequency Stability

±0.5ppm

Antenna Impedance

50Ω

Dimensions

88 x483 x 366mm

Weight

8.5kg

LCD display

220 * 176 pixels, 176 2.0 -inch color, line 4

Transmitter

RF Power Output

5-50W

FM Modulation

11K0F3E @ 12.5KHz

14K0F3E @ 20KHz

16K0F3E @ 25KHz

4FSK Digital Modulation

12.5kHz Data Only: 7K60FXD

12.5kHz Data & Voice: 7K60FXW

Conducted/Radiated Emission

-36dBm<1GHz

-30dBm>1GHz

Modulation Limiting

±2.5KHz @ 12.5KHz

±4.0KHz @ 20KHz

±5.0KHz @ 25KHz

FM Noise

40dB @ 12.5KHz

43dB @ 20KHz

45dB @ 25KHz

Adjacent Channel Power

60dB @ 12.5KHz

70dB @ 20/25KHz

Audio Response

+1 ~ -3dB

Audio Distortion

≤3%

Receiver

Sensitivity

Analog

0.3μV (12dB SINAD)

0.22μV (Typical) (12dB SINAD)

0.4μV (20dB SINAD)

Digital

0.3μV /BER5%

Adjacent Selectivity

TIA-603

ETSI

60dB @ 12.5KHz / 75dB @ 20&25KHz 60dB @ 12.5KHz / 75dB @ 20&25KHz

Spurious Response Rejection

TIA-603

ETSI

80dB @ 12.5/20/25KHz

80dB @ 12.5/20/25KHz

Inter-modulation

TIA-603

ETSI

75dB @ 12.5/20/25KHz

70dB @ 12.5/20/25KHz

Hum & Noise

40dB @ 12.5KHz

43dB @ 20KHz

45dB @ 25KHz

Rated Audio Power Output

0.5W

Rated Audio Distortion

≤3%

Audio Response

+1 ~ -3dB

Conducted Spurious Emission

< -57dBm

Environmental Specifications

Operating Temperature

-30°C ~ +60°C

Storage Temperature

-40°C ~ +85°C

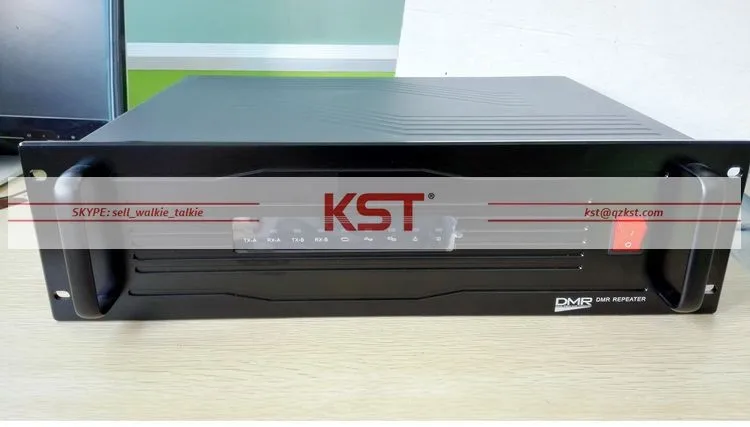

  DM-R8000 DMR VHF136-174MHz Repeater.jpg
